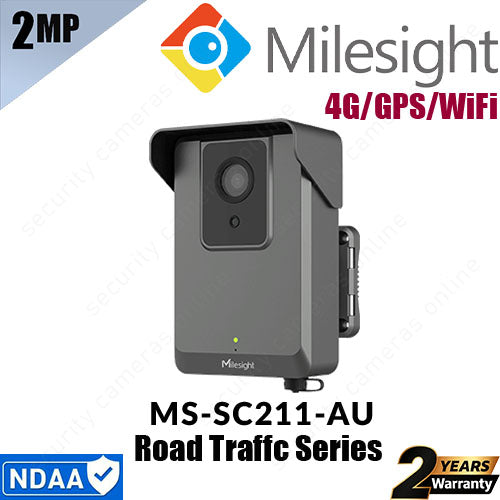

The Milesight SC211-NA/EU/AU is a 2MP 4G solar-powered traffic sensing camera designed for flexible roadside deployments. With support for radar-triggered capture, integrated GPS, and low-power operation modes, it’s optimised for smart traffic and vehicle monitoring applications. NDAA compliance and versatile wireless communication options make it suitable for various regional deployments in NA, EU, and AU.
Feature Highlights:
- 2MP CMOS sensor with 1080p resolution
- Built-in GPS and 24GHz radar module for precise positioning and trigger
- Dual-lens options (6mm or 16mm) to suit various monitoring distances
- Supports 4G LTE (region-specific bands) and WLAN (802.11n/g)
- Solar-powered operation with battery and USB-C backup charging
- Radar-triggered and quick start capture for high detection accuracy
- Low-power design supports extended uptime in remote areas
- Supports MQTT/HTTP protocol for cloud-based or local integration
- Wi-Fi support for fast and easy web-based configuration
- NDAA-compliant design
- Can be coupled with solar panels like Milesight MS-SLR-S45
Applications:
- Traffic sensing and roadside vehicle monitoring
- Temporary or remote traffic surveillance
- Solar-powered deployments where wiring is not practical
- Smart city projects needing compact, self-powered solutions
- Farms, mining sites, estates access gates
Technical Specifications:
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Day/Night Mode: Day/Night/Auto
- IR Wavelength: 850nm (default); 740nm (optional)
- Max. Resolution: 1920 × 1080
- Image Settings: Brightness, Contrast, Saturation, Sharpness
- Lens: 16mm
- Field of View: 6mm: H52.8°, D60.4°, V29.7°; 16mm: H19.4°, D22.2°, V11°
- Night-time Illumination Distance: up to 25m
- Optimal Capture Distance: 15–20m
- Capture Range: 10–25m
- Capture Speed: <70km/h
- Capture Rate: ≥95%
- WiFi Network – WLAN: 802.11n / 802.11g
- 4G/LTE Wireless Network: AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
- SIM Card Slot: Nano SIM
- Protocol Support: MQTT, HTTP
- Storage: MicroSD/SDHC/SDXC, up to 256GB
- GPS Module: Built-in high-accuracy GPS
- Radar Frequency: 24GHz
- Power (Solar): ≥35W, OCV <22V, Connector: MC4
- Power (Battery): 7.2V, 6400mAh, 46.08Wh
- Power Supply: USB Type-C
- Power Consumption: Normal Detection: 0.33W; Normal Capture: 1.35W; Night Capture: Max 11W
- Operating Temperature: Charging: -20°C ~ -45°C; Discharging: -20°C ~ 60°C
- Weather Resistance: IP66
- Dimensions: 175mm × 111mm × 63.2mm (without rain cover)
- Weight: Camera: 1040g; Battery: 212g
- Warranty: 2 Years
