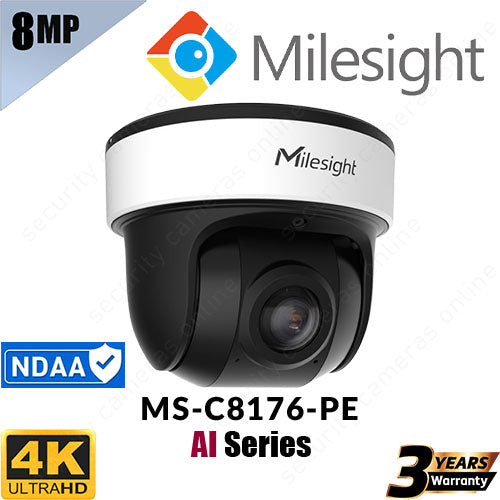

Milesight MS-C8176-PE AI 4K Mini Dome Panoramic Security 8MP IP Camera
$430.00 $400.00
Tax included.
Shipping calculated at checkout.
The Milesight MS-C8176-PE is a 4K AI panoramic mini dome camera designed to deliver ultra-wide 180° coverage in a compact form. Built for both indoor and outdoor use, it combines high-resolution imaging with intelligent video analytics, offering clear visuals and situational awareness for broad-area monitoring applications.
Feature Highlights:
- 4K Panoramic Imaging: 1/2.8″ Progressive Scan CMOS delivering 3840 × 2160 resolution with 180° horizontal view.
- Built-in Microphone: Captures ambient audio to enhance situational context.
- AI Video Analytics: Includes intrusion detection, region entrance/exit, line crossing, loitering, people counting, and object removal.
- Smart IR II: Infrared range up to 15 metres for low-light clarity.
- Compact Form Factor: Discreet, low-profile design ideal for space-limited installations.
- Smart H.265+ Compression: Efficient encoding saves bandwidth and storage without compromising quality.
- 120dB Super WDR: Balanced exposure in high-contrast lighting scenarios.
- Weather & Vandal Resistance: Rated IP67 and IK10 for robust protection in demanding environments.
Applications:
- Retail entrances and checkouts
- Reception and lobby monitoring
- Hallways and corridors
- Hospital waiting areas
- Public space coverage indoors or under shelter
Technical Specifications:
- AI Enabled, NDAA approved
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Minimum Illumination:
Colour: 0.012 Lux @ F2.0
B/W: 0 Lux with IR on - Wide Dynamic Range: 120dB Super WDR
- Shutter Speed: 1/100000s ~ 1s
- IR Distance: Up to 15 metres
- Day/Night Mode: Day/Night/Auto/Customize/Schedule
- Signal-to-Noise Ratio: >55dB
- Lens: 1.68mm @ F2.0
- Mount: M12
- Field of View:
Horizontal: 180°
Vertical: 86° - DORI Distance:
Detect: 56.5m
Observe: 22m
Recognise: 11m
Identify: 5.5m - Max. Image Resolution: 3840 × 2160
- Primary Stream: 25fps @ 3840×2160, 3440×1936, 3200×1800, 2880×1624, 2560×1440, 1920×1080, 1280×720
- Secondary Stream: 25fps @ 704×576, 640×480, 640×360
- Tertiary Stream: 25fps @ 1280×720, 704×576, 640×480, 640×360
- Video Compression: H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG
- Video Bit Rate: 16Kbps ~ 16Mbps (CBR/VBR Adjustable)
- Privacy Masking: Up to 8 areas (mask or mosaic)
- ROI: Up to 8 areas
- Image Settings: Brightness, Contrast, Saturation, Sharpness
- Image Enhancement: BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode
- Network Interface: 1 × RJ45 10M/100M Ethernet Port
- Audio: Built-in microphone
- Audio Compression: G.711, AAC, G.722, G.726
- Sampling Rate: 8/16/32/44.1/48 kHz
- Audio Bit Rate: 16–256 kbps
- Local Storage: Supports MicroSD/SDHC/SDXC card up to 1TB
- Network Storage: NAS (NFS, SMB/CIFS), ANR
- Protocols: IPv4/IPv6, TCP, UDP, RTP, RTSP, RTMP, HTTP, HTTPS, FTP, SMTP, DHCP, NTP, SNMP, SIP, VLAN, PPPoE, IGMP, SSL, TLS 1.2, etc.
- Intelligent Video Analysis (VCA 2.0):
Intrusion Detection, Region Entrance, Region Exit, Advanced Motion Detection, Line Crossing, Loitering, Object Left/Removed - Attribute Extraction:
Supports up to 50 targets; attributes include clothing colour, hat, vehicle type - Object Counting:
Line crossing and regional counting (up to 4 areas) - Heat Map: Built-in behavioural analysis
- Event Triggers: Motion Detection, Tamper Detection, Audio Alarm, Network Disconnection, etc.
- Event Actions: FTP/SMTP upload, SD card recording, SIP phone, HTTP notification
- System Compatibility: ONVIF Profiles G, M, S, T; API
- SIP/VoIP: Supported
- Operating Temperature: -40°C to +60°C
- Operating Humidity: 0–95% RH (non-condensing)
- Power Supply: PoE (802.3af) or DC 12V ±10%
- Power Consumption:
Min: 4W (DC), 5W (PoE)
Max: 7.6W (DC), 9W (PoE) - Weather Protection: IP67
- Vandal Resistance: IK10
- Dimensions: Ø127mm × 107mm
- Weight: 853g
- Warranty: 3/5 years (depending on region)
