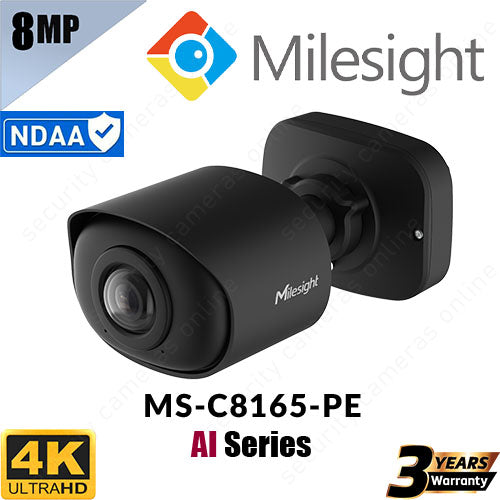

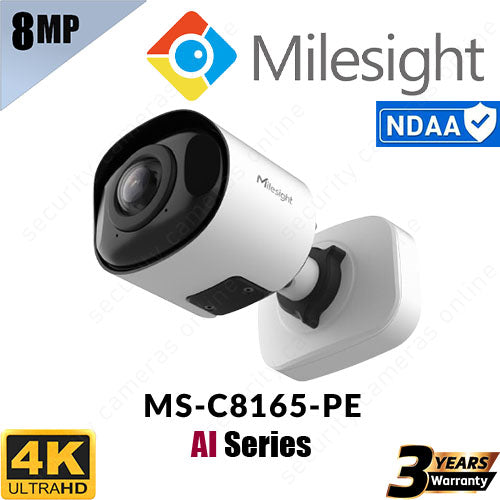

Milesight 8MP MS-C8165-PE Panoramic Security Camera
$416.00 $400.00
Tax included.
Shipping calculated at checkout.
The Milesight MS-C8165-PE is a compact 4K AI-enabled panoramic mini bullet network camera featuring a 180° ultra-wide field of view, advanced analytics, and Smart H.265+ compression for efficient bandwidth and storage use. With Smart IR up to 15 metres, built-in microphone, and IP67/IK10-rated protection, it is ideal for wide-area surveillance in indoor and outdoor environments.
Feature Highlights:
- 4K Ultra HD Panoramic Imaging: 1/2.8″ Progressive Scan CMOS delivering 3840 × 2160 resolution with a 180° horizontal field of view.
- Ultra-Wide Lens: 1.68mm @ F2.0 for seamless panoramic coverage.
- Smart IR: Up to 15 metres for effective night monitoring.
- Advanced AI Analytics: Intrusion detection, loitering, line crossing, people counting, and object detection.
- 120dB Super WDR: Captures clear images under high-contrast conditions.
- Smart H.265+ Compression: Reduces bandwidth and storage without compromising quality.
- Audio Support: Built-in microphone for situational monitoring.
- Rugged Build: IP67 weather resistance and IK10-rated vandal protection.
Applications:
- Retail and shopping centre monitoring
- Car park and perimeter surveillance
- School and campus safety
- Office and warehouse monitoring
- Public area and city surveillance
Technical Specifications:
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Minimum Illumination:
Colour: 0.012 Lux @ F2.0
B/W: 0 Lux with IR on - Wide Dynamic Range: 120dB Super WDR
- Shutter Speed: 1/100000s ~ 1s
- IR Distance: Up to 15 metres
- Day/Night Mode: Day/Night/Auto/Customize/Schedule
- Signal-to-Noise Ratio: >55dB
- Lens: 1.68mm @ F2.0
- Mount: M12
- Field of View: Horizontal 180°, Vertical 86°
- Max. Image Resolution: 3840 × 2160
- Primary Stream:
60Hz/50Hz: 25fps @ 3840×2160, 3440×1936, 3200×1800, 2880×1624, 2560×1440, 1920×1080, 1280×720 - Secondary Stream:
60Hz/50Hz: 25fps @ 704×576, 640×480, 640×360 - Tertiary Stream:
60Hz/50Hz: 25fps @ 1280×720, 704×576, 640×480, 640×360 - Video Compression: H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG
- Bit Rate: 16 Kbps ~ 16 Mbps (CBR/VBR Adjustable)
- Privacy Masking: Up to 8 areas
- Region of Interest (ROI): Up to 8 areas
- Image Settings: Brightness, Contrast, Saturation, Sharpness
- Ethernet: 1 × RJ45 10M/100M Ethernet port
- Audio: Built-in Microphone
- Network Storage: NAS (NFS, SMB/CIFS), ANR supported
- Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
- Audio Compression: G.711, AAC, G.722, G.726
- Audio Sampling Rate: 8/16/32/44.1/48 kHz
- Audio Bit Rate: 16–256 kbps
- Two-Way Audio: Not supported
- Intelligent Video Analytics: Region entrance/exit, advanced motion detection, tamper detection, line crossing, loitering, object left/removed, people counting (up to 4 zones)
- Advanced Functions: Heat map, BLC, HLC, 2D/3D DNR, defog, AWB, AGC, IP filtering, anti-flicker, corridor mode, deblur, watermark
- SIP/VoIP: Supported (voice & video-over-IP)
- Event Triggers: Motion detection, network disconnection, audio alarm
- Event Actions: FTP upload, SMTP upload, SD card recording, SIP phone, HTTP notification
- System Compatibility: ONVIF Profiles G, Q, S, T; API
- Storage: Supports microSD/SDHC/SDXC card up to 256GB
- Operating Temperature: -40°C ~ +60°C
- Operating Humidity: 0 ~ 95% RH (non-condensing)
- Power Supply: PoE (802.3af) / DC 12V ±10%
- Power Consumption: 7W max, 9W max (with IR on)
- Weather Protection: IP67-rated
- Vandal Resistance: IK10-rated metal housing
- Dimensions: 95.8mm × 74mm × 158.5mm
- Weight: 630g
- Warranty: 3 / 5 years
