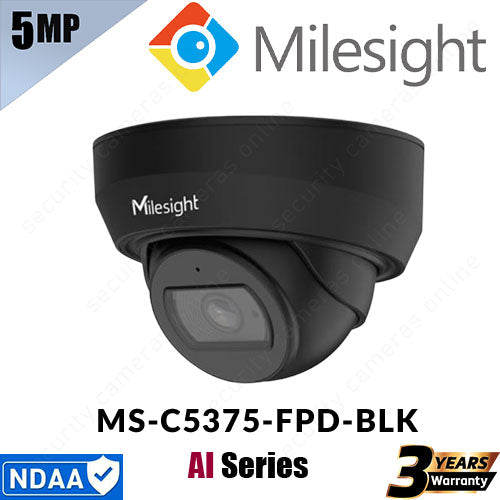

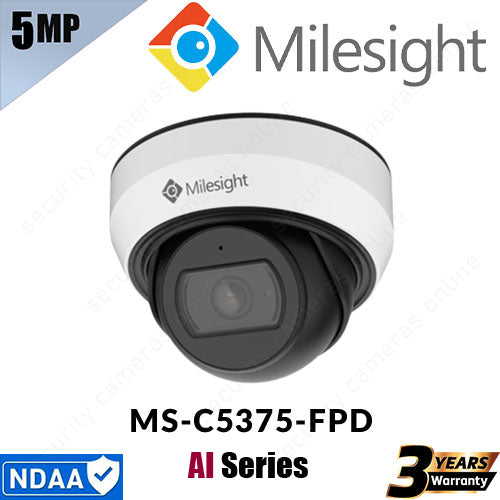

Milesight 5MP MS-C5375-FPD Mini Turret VF Security Camera
$315.00 $303.00
Tax included.
Shipping calculated at checkout.
The Milesight MS-C5375-FPD is a 5MP AI-powered motorised dome network camera designed for clear, detailed surveillance across indoor and outdoor environments. Featuring advanced AI analytics, H.265+ compression, and up to 50m IR illumination, it offers efficient, reliable monitoring while maintaining low bandwidth and storage usage.
Feature Highlights:
- 5MP High-Resolution Imaging: 1/2.8″ Progressive Scan CMOS, 2592 × 1944 resolution.
- Motorised Varifocal Lens: 2.7–13.5mm @ F1.4 for flexible monitoring and quick focus adjustment.
- Smart IR: IR illumination up to 50 metres for clear night performance.
- AI Video Analytics: Region entrance/exit, line crossing, object detection, people counting, advanced motion analysis.
- 120dB Super WDR: Ensures high-quality images in high-contrast lighting.
- H.265+ Compression: Reduces bandwidth and storage requirements without compromising quality.
- Robust Design: IK10 vandal protection and IP67 weather resistance for harsh environments.
- Audio Support: Built-in microphone and two-way audio capability for situational awareness.
Applications
- Retail and commercial facility surveillance
- Office and building monitoring
- School and campus security
- Warehouse and logistics site monitoring
- Public area safety
Technical Specifications:
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Minimum Illumination:
Colour: 0.005 Lux @ F1.4
B/W: 0 Lux with IR on - Wide Dynamic Range: 120dB Super WDR
- Shutter Speed: 1/100000s ~ 1s
- IR Distance: Up to 50 metres
- Day/Night Mode: Day/Night/Auto/Customize/Schedule
- Signal-to-Noise Ratio: >55dB
- Lens: Motorised 2.7–13.5mm @ F1.4
- Field of View:
Horizontal: 99° ~ 31°
Vertical: 72° ~ 23°
Diagonal: 124° ~ 38° - Mount: Φ14
- Focus Control: Auto / Manual
- Max. Image Resolution: 2592 × 1944
- Primary Stream:
60Hz: 30fps @ 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576
50Hz: 25fps @ 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576 - Secondary Stream:
60Hz: 30fps @ 704×576, 640×480, 640×360, 352×288
50Hz: 25fps @ 704×576, 640×480, 640×360, 352×288 - Tertiary Stream:
60Hz: 30fps @ 1280×720, 704×576, 640×480, 640×360, 352×288
50Hz: 25fps @ 1280×720, 704×576, 640×480, 640×360, 352×288 - Video Compression: H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG
- Bit Rate: 16 Kbps ~ 16 Mbps (CBR/VBR Adjustable)
- Privacy Masking: Up to 4 areas
- Region of Interest (ROI): Up to 8 areas
- Image Settings: Brightness, Contrast, Saturation, Sharpness
- Ethernet: 1 × RJ45 10M/100M Ethernet Port
- Audio I/O: Built-in Microphone; 1 input / 1 output (multi-interface version)
- Alarm I/O: 1 input / 1 output (multi-interface version)
- Network Storage: NAS (NFS, SMB/CIFS), ANR supported
- Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
- Audio Compression: G.711, AAC, G.722, G.726
- Audio Sampling Rate: 8/16/32/48 kHz
- Audio Bit Rate: 16–256 kbps
- Two-Way Audio: Supported
- Intelligent Video Analytics: Region entrance/exit, advanced motion detection, tamper detection, line crossing, loitering, object left/removed
- Advanced Functions: BLC, HLC, 2D/3D DNR, defog, AWB, IP address filtering, AGC, anti-flicker, corridor mode, deblur
- SIP/VoIP: Supported
- Event Triggers: Motion detection, network disconnection, external input, audio alarm
- Event Actions: FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification
- System Compatibility: ONVIF Profiles G, Q, S, T; API
- Storage: Supports microSD/SDHC/SDXC card up to 256GB
- Operating Temperature: -40°C ~ +60°C
- Operating Humidity: 0 ~ 90% RH (non-condensing)
- Power Supply: PoE (802.3af); PoE (802.3af) / DC 12V ±10% (multi-interface version)
- Power Consumption: 5.5W max, 6.5W max (with IR on)
- Weather Protection: IP67-rated
- Vandal Resistance: IK10-rated metal housing
- Dimensions: Φ130mm × 115mm
- Weight: 780g
- Warranty: 3 / 5 years
