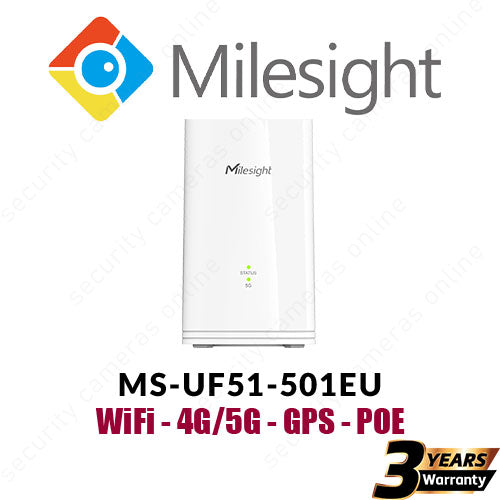

Milesight MS-UF51-501EU 5G WIFI GPS CPE Wireless Router

The Milesight UF51-501EU is a robust 5G CPE router designed for high-speed industrial networking in both indoor and outdoor applications. Featuring global 5G Sub-6GHz SA/NSA connectivity, integrated Wi-Fi 6, and multiple Ethernet, serial, and I/O interfaces, it offers ultra-fast, secure, and reliable connections. Its IP67 housing, extended temperature tolerance, and flexible mounting options make it ideal for harsh environments.

Feature Highlights:

• 5G Sub-6GHz NSA & SA network with dual-carrier aggregation and up to 4.67 Gbps downlink speed
• Wi-Fi 6 with 2.4 GHz and 5 GHz dual-band support; up to 3.6 Gbps combined throughput
• Quad-core ARM Cortex-A55 CPU with 1 GB RAM and 1 GB Flash for industrial-grade performance
• 2 × Gigabit Ethernet ports (one up to 2.5G) with optional PoE power input
• 1 × RS485 (RS232 optional), 1 × DI + 1 × DO galvanically isolated I/O
• Built-in 8 × 5G antennas and 4 × Wi-Fi antennas for superior signal strength
• Built-in GPS/GNSS module supporting GPS, GLONASS, Beidou, Galileo, and QZSS
• Secure VPN options: IPsec, OpenVPN, PPTP, L2TP
• Centralized remote management via DeviceHub and Node-RED integration

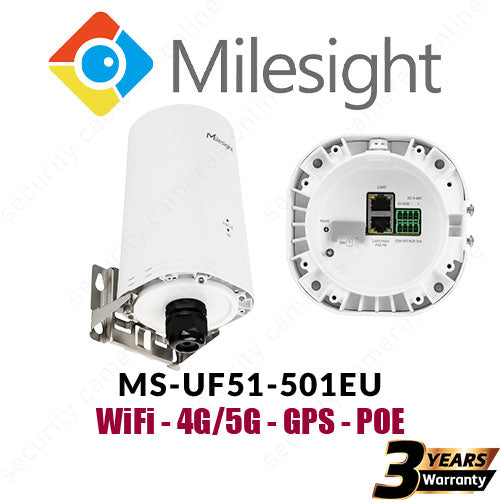

• Rugged IP67-rated enclosure; pole/wall/desktop mount options
• Watchdog, failover support, and multilevel access control for operational stability


Applications:

• Outdoor 5G broadband for smart cities and industrial automation
• Edge gateway in traffic systems and robotics
• Wireless backup for surveillance and media streaming
• Remote site connectivity for M2M and IoT deployments
• Smart offices, energy grids, and construction sites


Technical Specifications

• CPU: Quad-core ARM Cortex-A55, 2 GHz
• Memory: 1 GB LPDDR4x RAM; 1 GB NAND Flash
• Cellular Network Support: 5G NR SA/NSA / 4G LTE / WCDMA
• Supported Frequency Bands: 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78; LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32; LTE TDD: B38/B40/B41/B42/B43
  WCDMA: B1/B5/B8
• SIM Slot: 1 × Micro SIM (3FF)
• 5G Antennas: 8 × internal
• Wi-Fi Interface (Optional): 4 × internal antennas;
  2.4 GHz: IEEE 802.11b/g/n/ax (4×4 MIMO), up to 1200 Mbps
  5 GHz: IEEE 802.11a/n/ac/ax (4×4 MIMO), up to 2400 Mbps
• GNSS Support: 1 × internal antenna
• Supports GPS/GLONASS/Beidou/Galileo/QZSS
• Ethernet Ports: 1 × 10/100/1000 Mbps LAN2; 1 × 10/100/1000/2500 Mbps LAN1/WAN
• LAN1 supports IEEE 802.3at PoE PD
• I/O Interface: 1 × RS485 (RS232 optional); 1 × DI (Dry Contact) + 1 × DO (Wet Contact) with 0.3A@30VDC
• USB Port: 1 × USB 3.0 Type-C for power and debugging
• Power Input: 9–48V DC (surge and polarity protected) or
  802.3at PoE on LAN1 (DC and PoE cannot be used simultaneously)
• Power Consumption: Without Wi-Fi: Typ. 4.8 W; Max 6.5 W; With Wi-Fi: Typ. 9.9 W; Max 14.4 W
• Housing: Polycarbonate + cast aluminium
• Ingress Protection: IP67
• Mounting Options: Desktop, pole, wall, bottom screw
• Operating Temperature: –30°C to +60°C
• Storage Temperature: –40°C to +85°C
• Humidity: 0–95% RH (non-condensing)
• Dimensions: Without connector: Ø105 × 110 × 187 mm; With waterproof connector: Ø105 × 110 × 218 mm
• Weight: Approx. 1.5 kg
• Certifications: CE, RoHS
• Warranty: 3 Years
