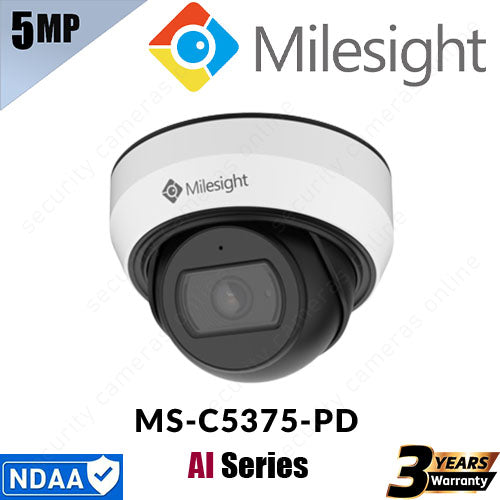

Milesight 5MP MS-C5375-PD Mini Turret AI Security Camera
$199.00
Tax included.
Shipping calculated at checkout.
The Milesight MS-C5375-PD is a 5MP AI-enabled dome network camera designed for high-quality, efficient monitoring with advanced video analytics. It features H.265+ compression, 120dB Super WDR, and built-in Smart IR for clear imaging under various lighting conditions, making it suitable for retail, offices, and public space monitoring.
Feature Highlights:
- 5MP High-Resolution Imaging: 1/2.8″ Progressive Scan CMOS delivering 2592 × 1944 resolution.
- Lens Options: Available in 2.8mm, 4mm, and 6mm @ F1.6 for flexible coverage.
- Smart IR: Up to 25 metres for effective night surveillance.
- AI Video Analytics: Region entrance/exit, line crossing, loitering, object detection, and people counting.
- 120dB Super WDR: Delivers clear images in high-contrast lighting.
- H.265+ Compression: Reduces bandwidth and storage needs while retaining high video quality.
- Audio Support: Built-in microphone for enhanced situational awareness.
- Robust Design: IK10-rated vandal protection and IP67 weather resistance.
Applications:
- Retail and commercial facility monitoring
- Office and building surveillance
- School and campus security
- Indoor and sheltered outdoor monitoring
- Warehouse and logistics site security
Technical Specifications:
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Minimum Illumination:
Colour: 0.005 Lux @ F1.6
B/W: 0 Lux with IR on - Wide Dynamic Range: 120dB Super WDR
- Shutter Speed: 1/100000s ~ 1s
- IR Distance: Up to 25 metres
- Day/Night Mode: Day/Night/Auto/Customize/Schedule
- Signal-to-Noise Ratio: >55dB
- Lens Options: 2.8mm, 4mm, 6mm @ F1.6
- Mount: M12
- Field of View:
2.8mm: H105°, D131°, V78°
4mm: H86°, D108°, V63°
6mm: H52°, D63°, V40° - Max. Image Resolution: 2592 × 1944
- Primary Stream:
60Hz: 30fps @ 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576
50Hz: 25fps @ 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, 704×576 - Secondary Stream:
60Hz: 30fps @ 704×576, 640×480, 640×360, 352×288
50Hz: 25fps @ 704×576, 640×480, 640×360, 352×288 - Tertiary Stream:
60Hz: 30fps @ 1920×1080, 1280×720, 704×576, 640×480, 640×360, 352×288
50Hz: 25fps @ 1920×1080, 1280×720, 704×576, 640×480, 640×360, 352×288 - Video Compression: H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG
- Bit Rate: 16 Kbps ~ 16 Mbps (CBR/VBR Adjustable)
- Privacy Masking: Up to 4 areas
- Region of Interest (ROI): Up to 8 areas
- Image Settings: Brightness, Contrast, Saturation, Sharpness
- Ethernet: 1 × RJ45 10M/100M Ethernet Port
- Audio: Built-in Microphone
- Network Storage: NAS (NFS, SMB/CIFS), ANR supported
- Protocols: IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
- Audio Compression: G.711, AAC, G.722, G.726
- Audio Sampling Rate: 8/16/32/48 kHz
- Audio Bit Rate: 16–256 kbps
- Two-Way Audio: Not available
- Intelligent Video Analytics: Region entrance/exit, advanced motion detection, tamper detection, line crossing, loitering, object left/removed, people counting
- Advanced Functions: BLC, HLC, 2D/3D DNR, defog, AWB, IP filtering, AGC, anti-flicker, corridor mode, deblur, watermark
- SIP/VoIP: Supported (voice & video-over-IP)
- Event Triggers: Motion detection, network disconnection, audio alarm
- Event Actions: FTP upload, SMTP upload, SD card recording, SIP phone, HTTP notification
- System Compatibility: ONVIF Profiles G, Q, S, T; API
- Storage: Supports microSD/SDHC/SDXC card up to 256GB
- Operating Temperature: -40°C ~ +60°C
- Operating Humidity: 0 ~ 90% RH (non-condensing)
- Power Supply: PoE (802.3af)
- Power Consumption: 3.8W max, 5.8W max (with IR on)
- Weather Protection: IP67-rated
- Vandal Resistance: IK10-rated metal housing
- Dimensions: Φ108mm × 96.5mm (junction box version), Φ106mm × 76.5mm (cable out version)
- Weight: 600g (junction box version), 410g (cable out version)
- Warranty: 3 / 5 years
